Configure Component Field
By default, component-level report data in ManageArtworks is grouped using the Component Name field. This grouping ensures consistency and accuracy when organizing and displaying component-related project information. However, you can modify this default field based on your organization’s requirements.
Note: The selected field must be configured as part of the project metadata. If it's not present in the project, the report may not display data as expected. |

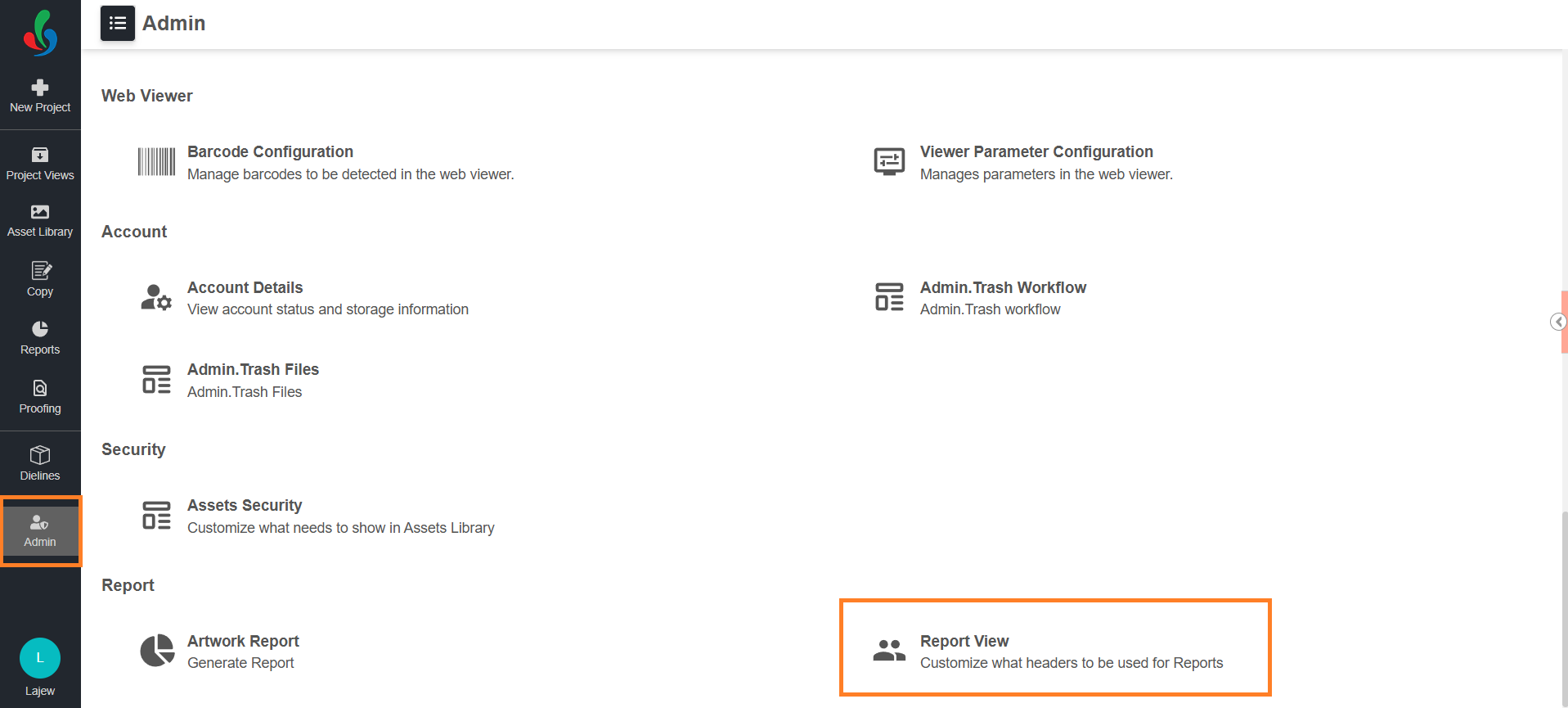

01. Access the Admin Module
- Log in to your ManageArtworks account.
- Navigate to the Admin module.
- Click the Reports View tab.

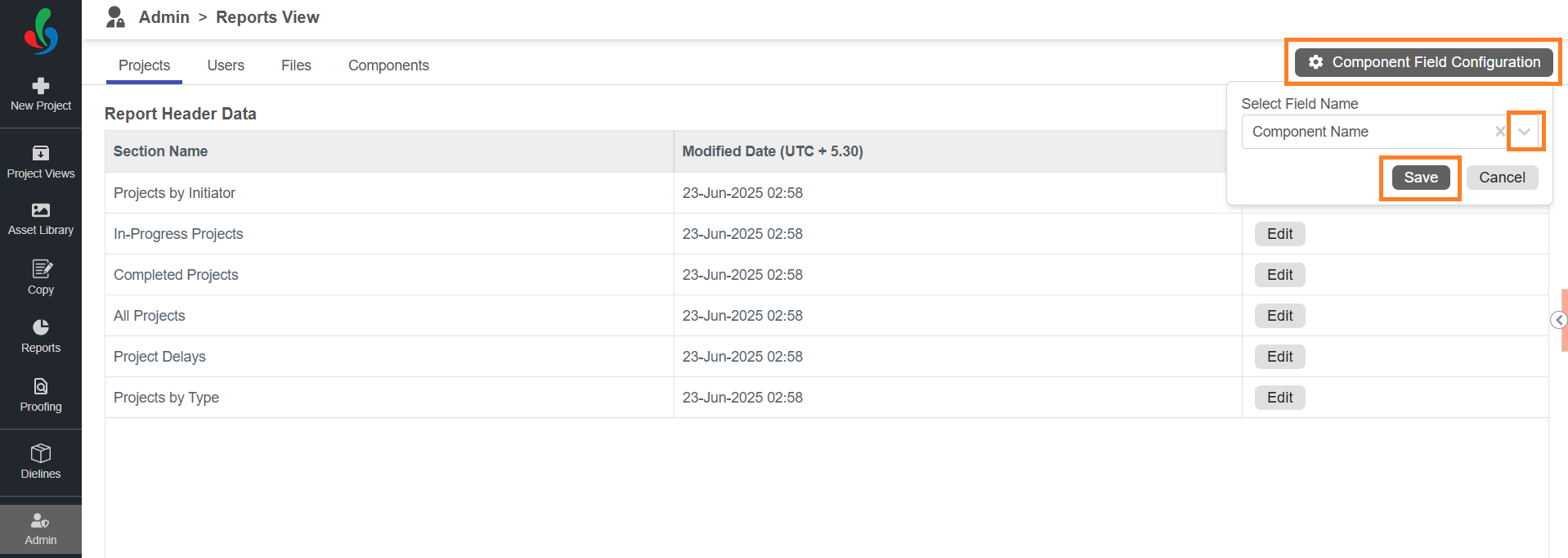

02. Configure Component Field
- In the Reports View screen, click the Component Field Configuration button.
- A configuration panel will appear, labeled Select Field Name.
- Click the drop-down icon in the configuration panel.
- Select the desired metadata field you want to use for grouping component-level report data (e.g., Component Name).
Note: You can select only one field for grouping at a time. - After selecting the appropriate field, click Save to apply your changes.
Once saved, the reports will group data based on the newly selected field across all relevant component-based views. This allows for customized and meaningful report structures aligned with your business needs.
