Annotate on Files

Annotation helps to communicate ideas or provide feedback on the artwork files.

Web Viewer provides easy-to-use marking and commenting tools in one location to manage everything without multiple email attachments or file versions.

Available annotation tools

Highlight, underline , strikeout, or squiggly text

You can use the Highlight Text tool, Underline Text tool, Strikethrough Text tool, and the Squiggly Text tool to add comments by themselves or in conjunction with notes.

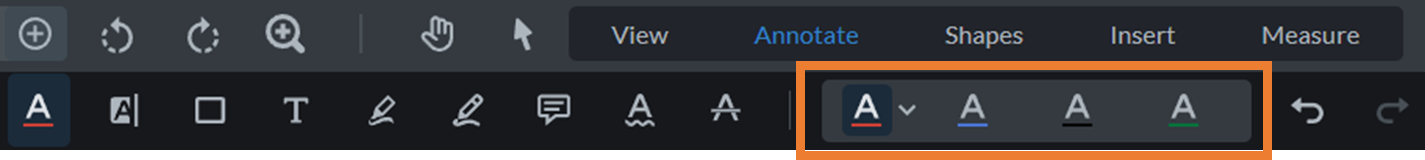

Choose Annotate to view the toolbar.

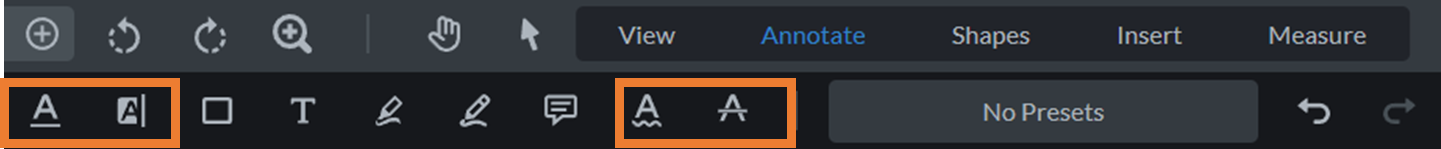

Select Highlight or Underline or Strikeout or Squiggly in the Annotate toolbar and select the text you want to highlight.
An annotation will be added to that highlight on the right pane.
If needed, click on the annotation created and add a comment.
Click Save to save the comment.

Edit a Comment

Select the comment you want to edit.
Click the three-dot icon.
Select Edit to edit the comment.
Click Save to save the comment.

Delete a Comment

Select the comment you want to delete.
Click the three-dot icon.
Select Delete to delete the comment.

Add a Free Text

Select Free Text in the Annotate toolbar and click where you want to place the note.
Type text and click Save to save the comment.

Add a line, arrow, or shape

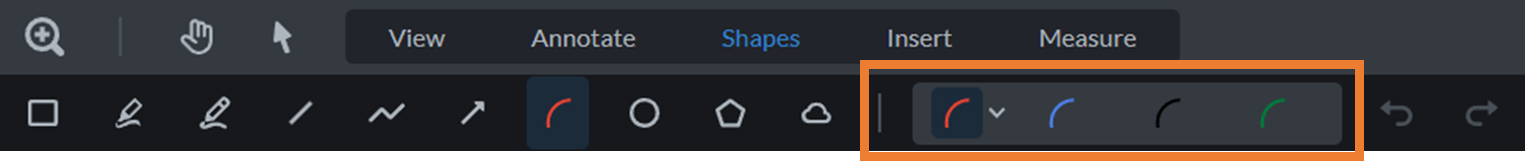

Choose Shapes to view the toolbar.
Add a line, arrow, or shape
When selecting a drawing tool, consider the effect you want.
- The Rectangle tool, Ellipse tool, Line tool, Polyline tool, Arrow tool, Arc tool let you create simple shapes.
- The Polygon tool, and Cloud tool create closed shapes with multiple segments.
- The Free Hand tool, and Free Hand Highlight creates free-form drawings.

Draw in the artwork file

To create a cloud or polygon shape, click to create the start point, move the pointer, and click to create each segment. To finish drawing the shape, click the start point, or right-click and choose Complete from the menu.
To draw a line, arrow, or rectangle, either drag across the area where you want the markup to appear.
To draw a square or circle, or to draw a line that’s horizontal, vertical, or at a 45° angle, press Shift while you draw.
To draw free-form lines using the Pencil tool, drag where you want to begin drawing. You can release the mouse button, move the pointer to a new location, and continue drawing.
To edit or resize the markup, select it and drag one of the handles to make your adjustments.

To delete a drawing markup, select it and press Delete on the pop-up.

Stamp an artwork file

Apply a stamp to an artwork file in much the same way you apply a rubber stamp to a paper document. You can choose from a list of predefined stamps, or you can create your own stamps.

The Stamp tool appears in the Insert toolbar.

Apply a stamp

Select a stamp by doing one of the following:
1. Click the Stamp tool. The most recently used stamp is selected.

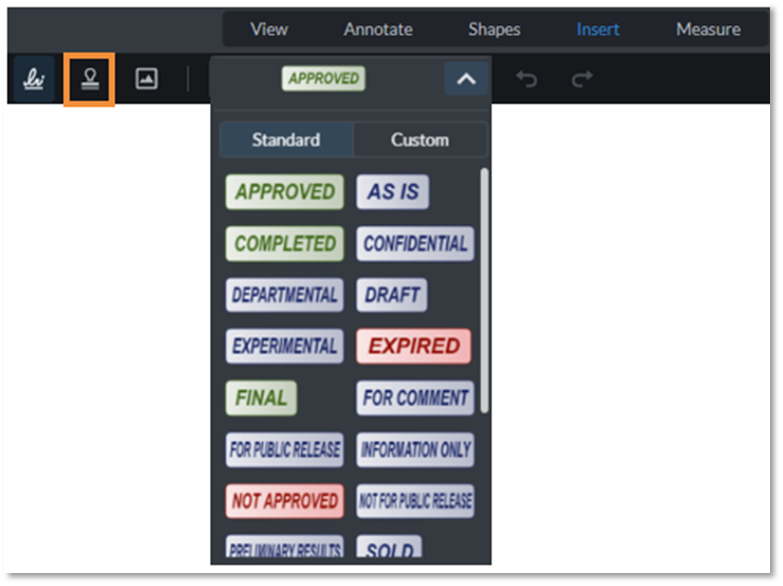

2. In the Stamps Palette, choose an appropriate stamp.
Click the document page where you want to place the stamp.

Change a stamp’s location or appearance

To move a stamp, drag it to a new location.
To resize a stamp, click it, and then drag a corner handle.
To rotate a stamp, click it, move the rotation stamp icon.
To delete a stamp, click it, and select Delete icon from the pop-up.

Create a custom stamp

Click Stamp and select the drop-down icon.
Click Custom.

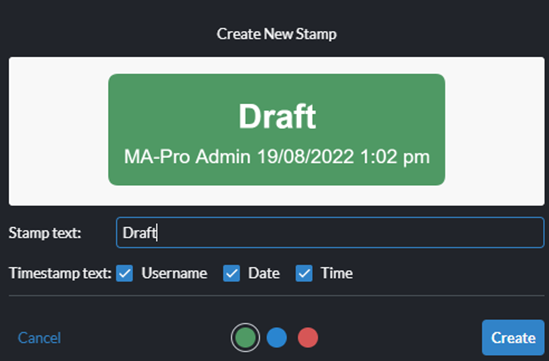

Enter the desired changes and click Create to create a custom stamp.

To delete a stamp from the artwork file, select it and press Delete on the pop-up.

To delete a created custom stamp, go to Custom and click the delete icon next to the stamp.

Sign an artwork file

Sign an artwork file, you can type, draw, or insert an image of your handwritten signature:

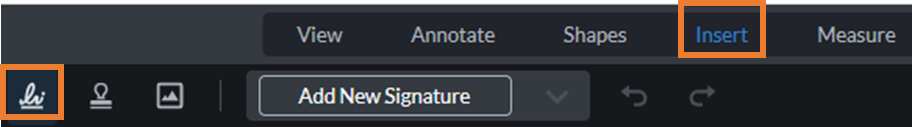

Select Signature from the insert toolbar.
If you've already added your signature or initials, just select it from the Sign options, and then click at the place in the artwork file where you want to add your signature. Skip to the next step.
If you are signing for the first time, you see the Add New Signature option. Click the Add New Signature option to open the signature panel.

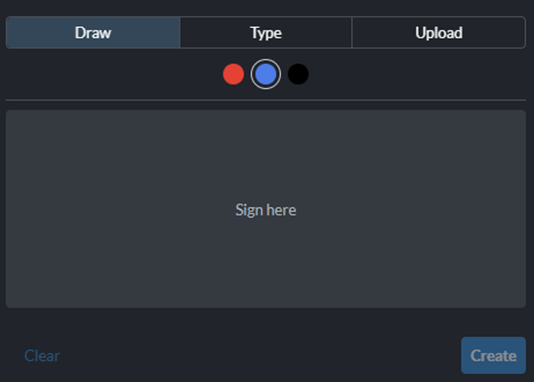

- Draw: Draw your signature in the field.
- Type: Type your name in the field.
- Upload: Browse and select an image of your signature.
Click Create, and then click where you want to place the signature or initial.
To move the placed signature or initial, click and drag it.
To resize the signature, click it, and then drag a corner handle.
To rotate a signature, click it, move the rotation icon.
To delete a signature, click it, and select Delete icon from the pop-up.

Insert an image into an artwork file

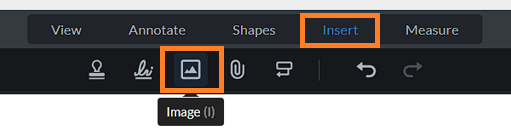

Select Image from the insert toolbar.
Click anywhere on the artwork file.
In the Open dialog box, locate the image file from your desktop that you want to place.
Select the image file and click Open.
Use the bounding box handles to resize the image.
To move the image, click and drag it.
To rotate the image, click it, move the rotation icon.
To delete the image, click it, and select Delete icon from the pop-up.

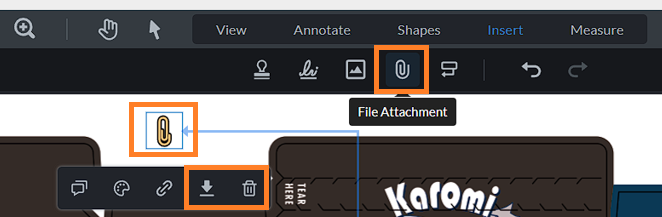

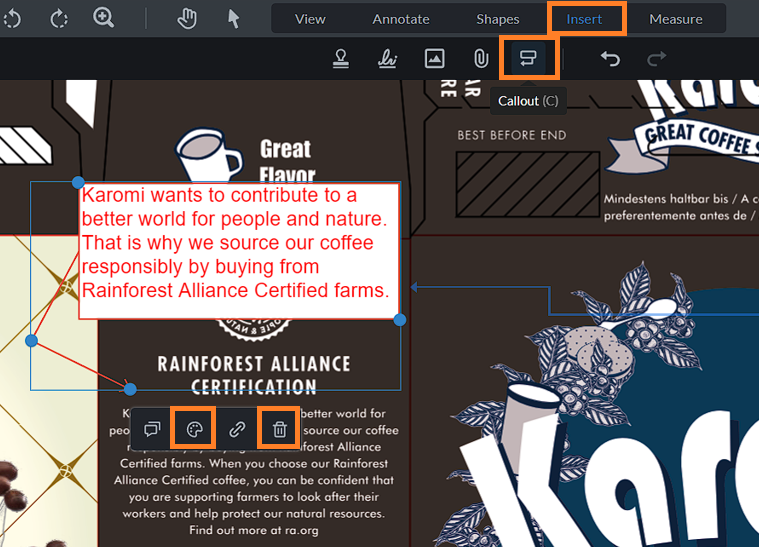

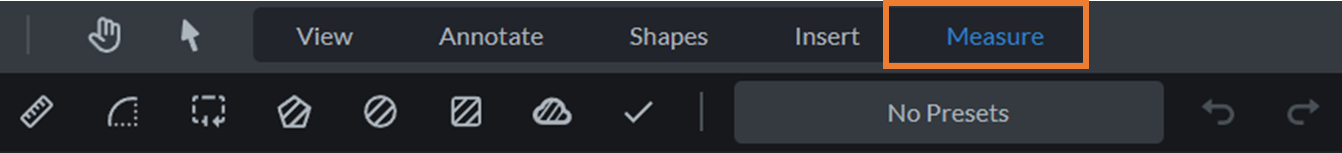

Measure

The measuring tools are useful for showing and verifying the distances and the areas associated with the designs or logos or text size and ensure that the artwork file has the proper dimensions. With the web viewer Measure tool, we can dump the manual process of taking printouts and verifying dimensions with measuring tape and scale. We can collaborate with the teams, to confirm the measurement before sending it to the printer department.

Select the Distance tool to measure the distance between two points. Click the first point, move the pointer to the second point, and click again.
Select the Arc tool to measure the distance of the curved path. Click the first point, move the pointer to the second point, and click again. Create the desired shape and click again.
Select the Perimeter tool to measure a set of distances between multiple points. Click each point you want to measure. Then, double-click the last point.
Select the Area tool to measure the area within that closed shapes (polygon or circle or square or cloud) that you draw.

Measurement Info

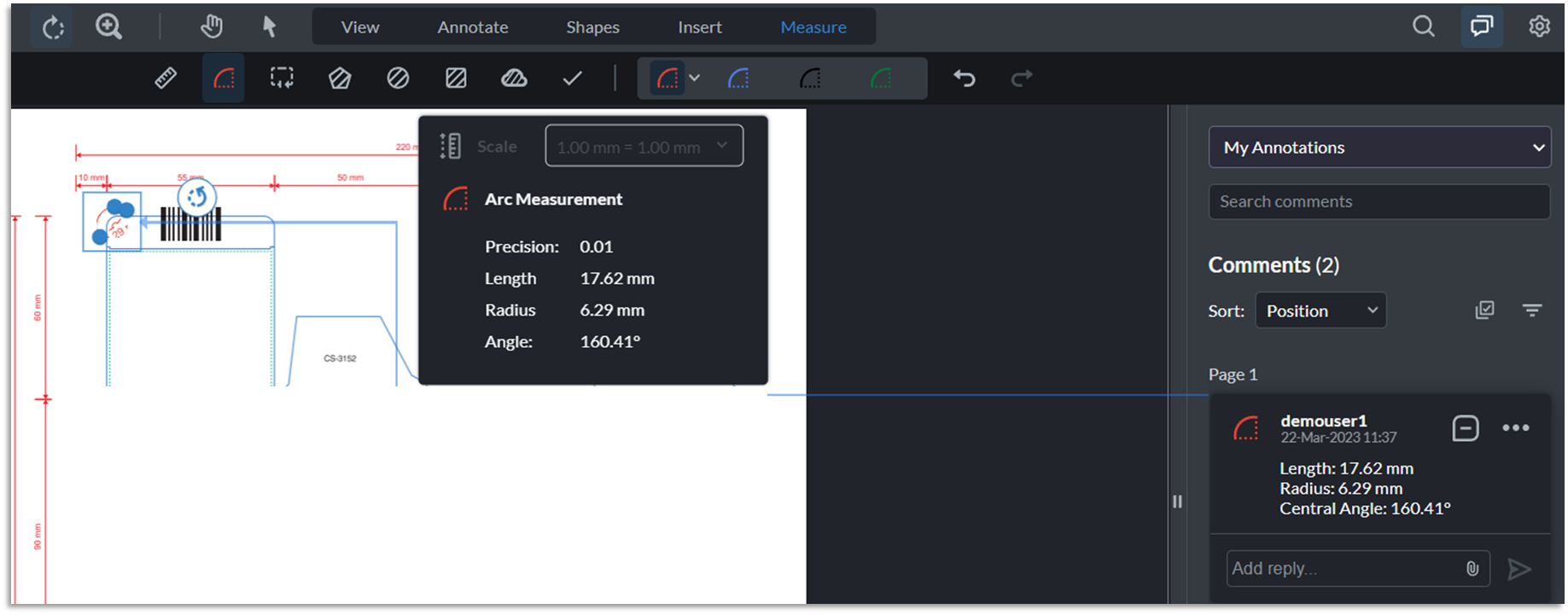

When you select the desired tool from measuring toolbar, a pop-up called "Measurement Info" will display information regarding the measurement, including precision, length, radius, and angle. As you measure the artwork using the selected tool, the measurement info will update in real time to show the current measurement. Web Viewer automatically insert comments with the calculated values for length, radius, and central angle.

Compare Files
